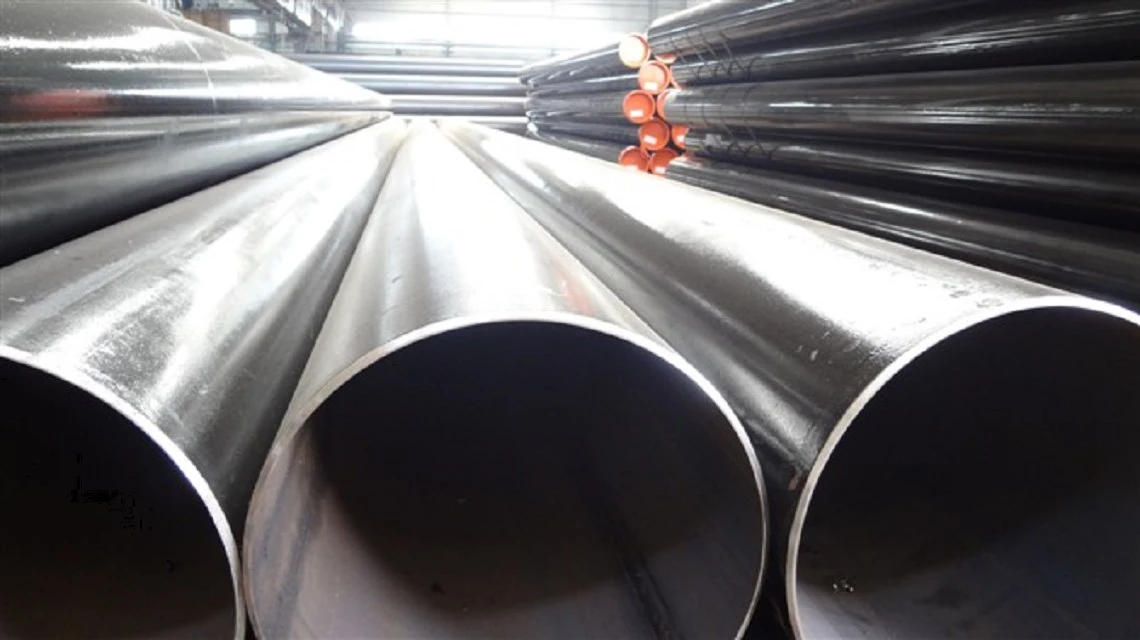

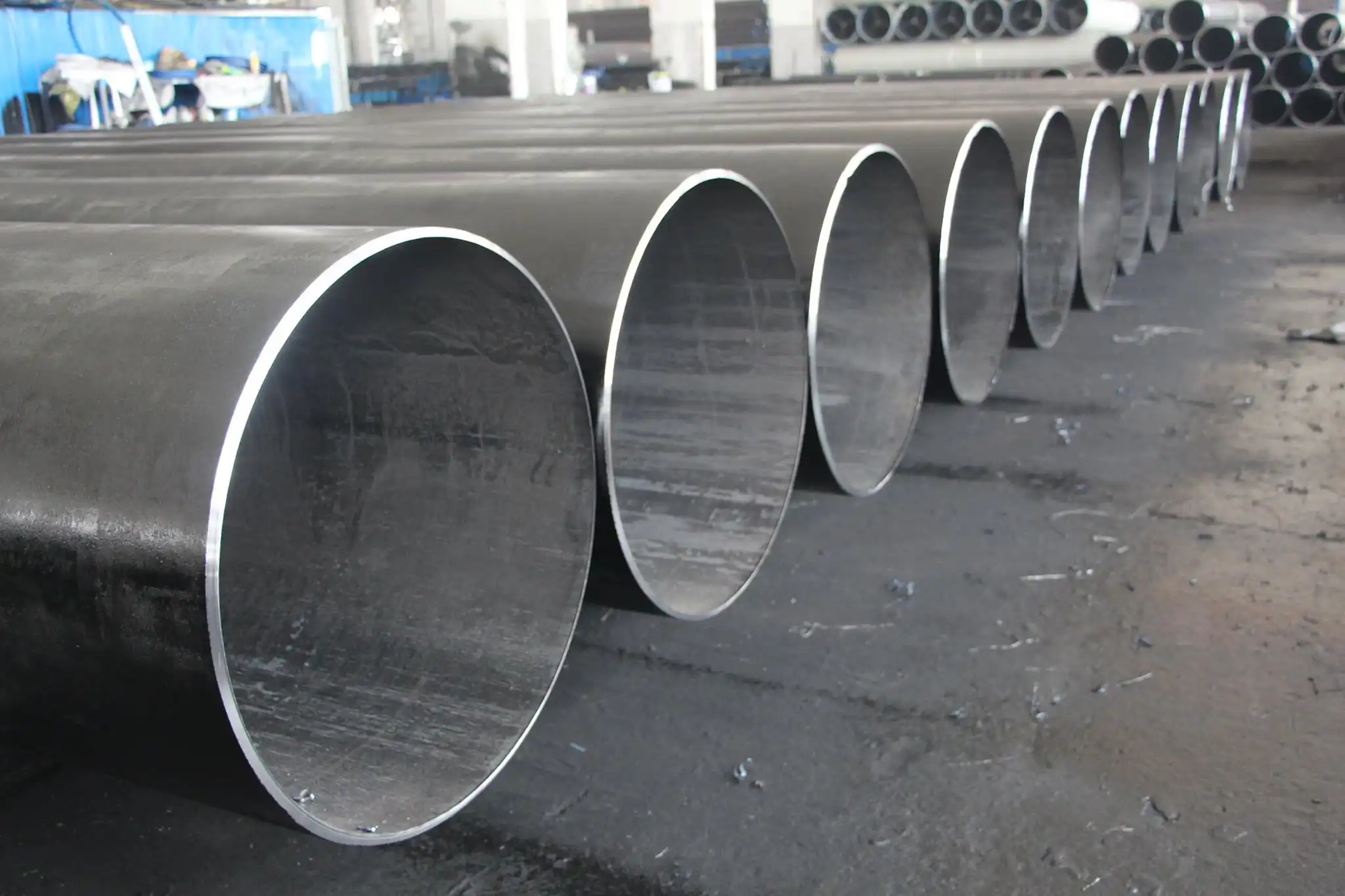

ASTM A500 Structural Tubing
Grades:A,B,C
Outer Diameter:114.3mm-1422mm
Thickness:6.02-101.6mm
Length:3-12.5 meters
Fastest Delivery Time: 7 Days+
Stock Quantity:50-100Tons
Introduction of ASTM A500 Structural Tubing:
Product Name: ASTM A500 Structural Tubing
Standard: GR.B
Welding Type: ERW(Electrical Resistance Weld), HFW(High Frequency Weld), LSAW(Longitudinally Submerged Arc Welding), DSAW(Double Submerged Arc Welding), SSAW(Spirally Submerged Arc Welding)
Outer Diameter: 1/2"-80" (21.3mm--2032mm)
Thickness: SCH10-SCH160 (6.35mm-59.54mm)
Length: 6m-18m
End: BE(Beveled Ends), PE(Plain Ends)
Test: Chemical Component Analysis, Mechanical Properties (Ultimate tensile strength, Yield strength, Elongation), Technical Properties (Flattening Test, Bending Test, Blow Test, Impact Test), Exterior Size Inspection, Hydrostatic Test, X-ray Test
Fastest Delivery Time: 7 Days for normal specification
Specification:
| （ ANSI B36.10 B36.19M） Outside Diameter amd Wall Thickness | |||||||||||||||||||
| NPS | OD | Norminal Wall Thickness | |||||||||||||||||
| INCH | DN | MM | 5s | 10s | 10 | 20 | 30 | 40s | STD | 40 | 60 | 80s | XS | 80 | 100 | 120 | 140 | 160 | XXS |
| 1/8 | 6 | 10.3 | -- | 1.24 | -- | -- | -- | 1.73 | 1.73 | 1.73 | -- | 2.41 | 2.41 | 2.41 | -- | -- | -- | -- | -- |
| 1/4 | 8 | 13.7 | -- | 1.65 | -- | -- | -- | 2.24 | 2.24 | 2.24 | -- | 3.02 | 3.02 | 3.02 | -- | -- | -- | -- | -- |
| 3/8 | 10 | 17.1 | -- | 1.65 | -- | -- | -- | 2.31 | 2.31 | 2.31 | -- | 3.2 | 3.2 | 3.2 | -- | -- | -- | -- | -- |
| 0.5 | 15 | 21.3 | 1.65 | 2.11 | -- | -- | -- | 2.77 | 2.77 | 2.77 | -- | 3.73 | 3.73 | 3.73 | -- | -- | -- | 4.78 | 7.47 |
| 0.75 | 20 | 26.7 | 1.65 | 2.11 | -- | -- | -- | 2.87 | 2.87 | 2.87 | -- | 3.91 | 3.91 | 3.91 | -- | -- | -- | 5.56 | 7.82 |
| 1 | 25 | 33.4 | 1.65 | 2.77 | -- | -- | -- | 3.38 | 3.38 | 3.38 | -- | 4.55 | 4.55 | 4.55 | -- | -- | -- | 6.35 | 9.09 |
| 1.25 | 32 | 42.2 | 1.65 | 2.77 | -- | -- | -- | 3.56 | 3.56 | 3.56 | -- | 4.85 | 4.85 | 4.85 | -- | -- | -- | 6.35 | 9.7 |
| 1.5 | 40 | 48.3 | 1.65 | 2.77 | -- | -- | -- | 3.68 | 3.68 | 3.68 | -- | 5.08 | 5.08 | 5.08 | -- | -- | -- | 7.14 | 10.15 |
| 2 | 50 | 60.3 | 1.65 | 2.77 | -- | -- | -- | 3.91 | 3.91 | 3.91 | -- | 5.54 | 5.54 | 5.54 | -- | -- | -- | 8.74 | 11.07 |
| 2.5 | 65 | 73 | 2.11 | 3.05 | -- | -- | -- | 5.16 | 5.16 | 5.16 | -- | 7.01 | 7.01 | 7.01 | -- | -- | -- | 9.53 | 14.02 |
| 3 | 80 | 88.9 | 2.11 | 3.05 | -- | -- | -- | 5.49 | 5.49 | 5.49 | -- | 7.62 | 7.62 | 7.62 | -- | -- | -- | 11.13 | 15.24 |
| 3.5 | 90 | 101.6 | 2.11 | 3.05 | -- | -- | -- | 5.74 | 5.74 | 5.74 | -- | 8.08 | 8.08 | 8.08 | -- | -- | -- | -- | -- |
| 4 | 100 | 114.3 | 2.11 | 3.05 | -- | -- | -- | 6.02 | 6.02 | 6.02 | -- | 8.56 | 8.56 | 8.56 | -- | 11.13 | -- | 13.49 | 17.12 |
| 5 | 125 | 141.3 | 2.77 | 3.4 | -- | -- | -- | 6.55 | 6.55 | 6.55 | -- | 9.53 | 9.53 | 9.53 | -- | 12.7 | -- | 15.88 | 19.05 |
| 6 | 150 | 168.3 | 2.77 | 3.4 | -- | -- | -- | 7.11 | 7.11 | 7.11 | -- | 10.97 | 10.97 | 10.97 | -- | 14.27 | -- | 18.26 | 21.95 |
| 8 | 200 | 219.1 | 2.77 | 3.76 | -- | 6.35 | 7.04 | 8.18 | 8.18 | 8.18 | 10.31 | 12.7 | 12.7 | 12.7 | 15.09 | 18.26 | 20.62 | 23.01 | 22.23 |
| 10 | 250 | 273.1 | 3.4 | 4.19 | -- | 6.35 | 7.8 | 9.27 | 9.27 | 9.27 | 12.7 | 12.7 | 12.7 | 15.09 | 18.26 | 21.44 | 25.4 | 28.58 | 25.4 |
| 12 | 300 | 323.9 | 3.96 | 4.57 | -- | 6.35 | 8.38 | 9.53 | 9.53 | 10.31 | 14.27 | 12.7 | 12.7 | 17.48 | 21.44 | 25.4 | 28.58 | 33.32 | 25.4 |
| 14 | 350 | 355.6 | 3.96 | 4.78 | 6.35 | 7.92 | 9.53 | -- | 9.53 | 11.13 | 15.09 | -- | 12.7 | 19.05 | 23.83 | 27.79 | 31.75 | 35.71 | -- |
| 16 | 400 | 406.4 | 4.19 | 4.78 | 6.35 | 7.92 | 9.53 | -- | 9.53 | 12.7 | 16.66 | -- | 12.7 | 21.44 | 26.19 | 30.96 | 36.53 | 40.49 | -- |
| 18 | 450 | 457.2 | 4.19 | 4.78 | 6.35 | 7.92 | 11.13 | -- | 9.53 | 14.27 | 19.05 | -- | 12.7 | 23.83 | 29.36 | 34.96 | 39.67 | 45.24 | -- |
| 20 | 500 | 508 | 4.78 | 5.54 | 6.35 | 9.53 | 12.7 | -- | 9.53 | 15.09 | 20.62 | -- | 12.7 | 26.19 | 32.54 | 38.1 | 44.45 | 50.01 | -- |
| 22 | 550 | 558.8 | 4.78 | 5.54 | 6.35 | 9.53 | 12.7 | -- | 9.53 | -- | 22.23 | -- | 12.7 | 28.58 | 34.93 | 41.28 | 47.63 | 53.98 | -- |
| 24 | 600 | 609.6 | 5.54 | 6.35 | 6.35 | 9.53 | 14.27 | -- | 9.53 | 17.48 | 24.61 | -- | 12.7 | 30.96 | 38.89 | 46.02 | 52.37 | 59.54 | -- |
| 26 | 650 | 660.4 | -- | -- | 7.92 | 12.7 | -- | -- | 9.53 | -- | -- | -- | 12.7 | -- | -- | -- | -- | -- | -- |
| 28 | 700 | 711.2 | -- | -- | 7.92 | 12.7 | 15.88 | -- | 9.53 | -- | -- | -- | 12.7 | -- | -- | -- | -- | -- | -- |
| 30 | 750 | 762 | 6.35 | 7.92 | 7.92 | 12.7 | 15.88 | -- | 9.53 | -- | -- | -- | 12.7 | -- | -- | -- | -- | -- | -- |
| 32 | 800 | 812.8 | -- | -- | 7.92 | 12.7 | 15.88 | -- | 9.53 | 17.48 | -- | -- | 12.7 | -- | -- | -- | -- | -- | -- |
| 34 | 850 | 863.6 | -- | -- | 7.92 | 12.7 | 15.88 | -- | 9.53 | 17.48 | -- | -- | 12.7 | -- | -- | -- | -- | -- | -- |
| 36 | 900 | 914.4 | -- | -- | 7.92 | 12.7 | 15.88 | -- | 9.53 | 19.05 | -- | -- | 12.7 | -- | -- | -- | -- | -- | -- |
| 38 | 950 | 965.2 | -- | -- | -- | -- | -- | -- | 9.53 | -- | -- | -- | 12.7 | -- | -- | -- | -- | -- | -- |
| 40 | 1000 | 1016 | -- | -- | -- | -- | -- | -- | 9.53 | -- | -- | -- | 12.7 | -- | -- | -- | -- | -- | -- |
| 42 | 1050 | 1066.8 | -- | -- | -- | -- | -- | -- | 9.53 | -- | -- | -- | 12.7 | -- | -- | -- | -- | -- | -- |
| 44 | 1100 | 1117.6 | -- | -- | -- | -- | -- | -- | 9.53 | -- | -- | -- | 12.7 | -- | -- | -- | -- | -- | -- |
| 46 | 1150 | 1168.4 | -- | -- | -- | -- | -- | -- | 9.53 | -- | -- | -- | 12.7 | -- | -- | -- | -- | -- | -- |
| 48 | 1200 | 1219.2 | -- | -- | -- | -- | -- | -- | 9.53 | -- | -- | -- | 12.7 | -- | -- | -- | -- | -- | -- |
| 52 | 1300 | 1321 | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- |
| 56 | 1400 | 1422 | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- |
| 60 | 1500 | 1524 | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- |
| 64 | 1600 | 1626 | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- |
| 68 | 1700 | 1727 | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- |
| 72 | 1800 | 1829 | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- |
| 76 | 1900 | 1930 | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- |
| 80 | 2000 | 2032 | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- |
Chemical Composition and Mechanical Properties:
| Standard | Grade | Chemical Composition% | Mechanical Properties(min) | |||||
| C | Cu | Mn | P | S | Tensile Strength(Mpa) | Yield Strength(Mpa) | ||
| ASTM A500 | B | 0.26 max | 0.20 min | 1.35 max | 0.035 max | 0.035 max | 400 | 290 |
Our Advantages for ASTM A500 Structural Tubing:
· Competitive Price: We have long-term stable cooperation with raw material factories, mature and complete production supporting facilities, a rigorous quality control system, and an integrated model that keeps our production costs at a relatively low level.
· Fast Delivery Time: The production of steel pipes with standard specification can be completed in as fast as 7 days.
· Complete Certification: All types of certificates are available, including API 5L certificate, ISO 9001 certificate, ISO 14001 certificate, FPC certificate, Environmental Quality System certificate, and more.
· Advanced Production Equipment: We imported the equipment from Germany and developed independently four production equipments.
· Professional Team: We have over 300 employees, including more than 60 technical personnel, and possesses an independent equipment research team.
· Comprehensive Testing Facilities: We are equipped with various testing facilities, including but not limited to online ultrasonic automatic flaw detectors, industrial X-ray television and other essential testing equipment.
Application:
ASTM A500 Structural Tubing finds widespread use in various industries and applications, including:

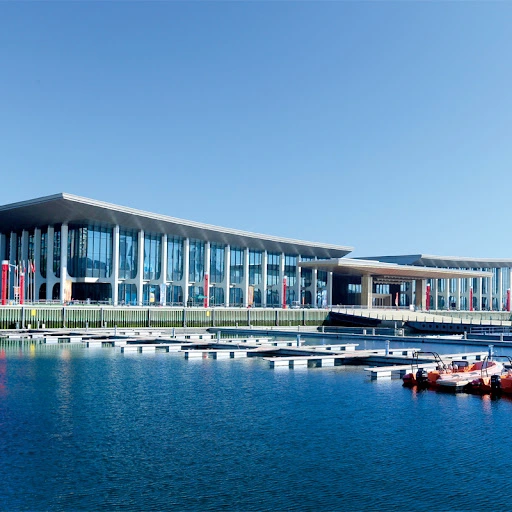

· Construction: Used in building frames, columns, beams, and other structural components in residential, commercial, and industrial construction projects.

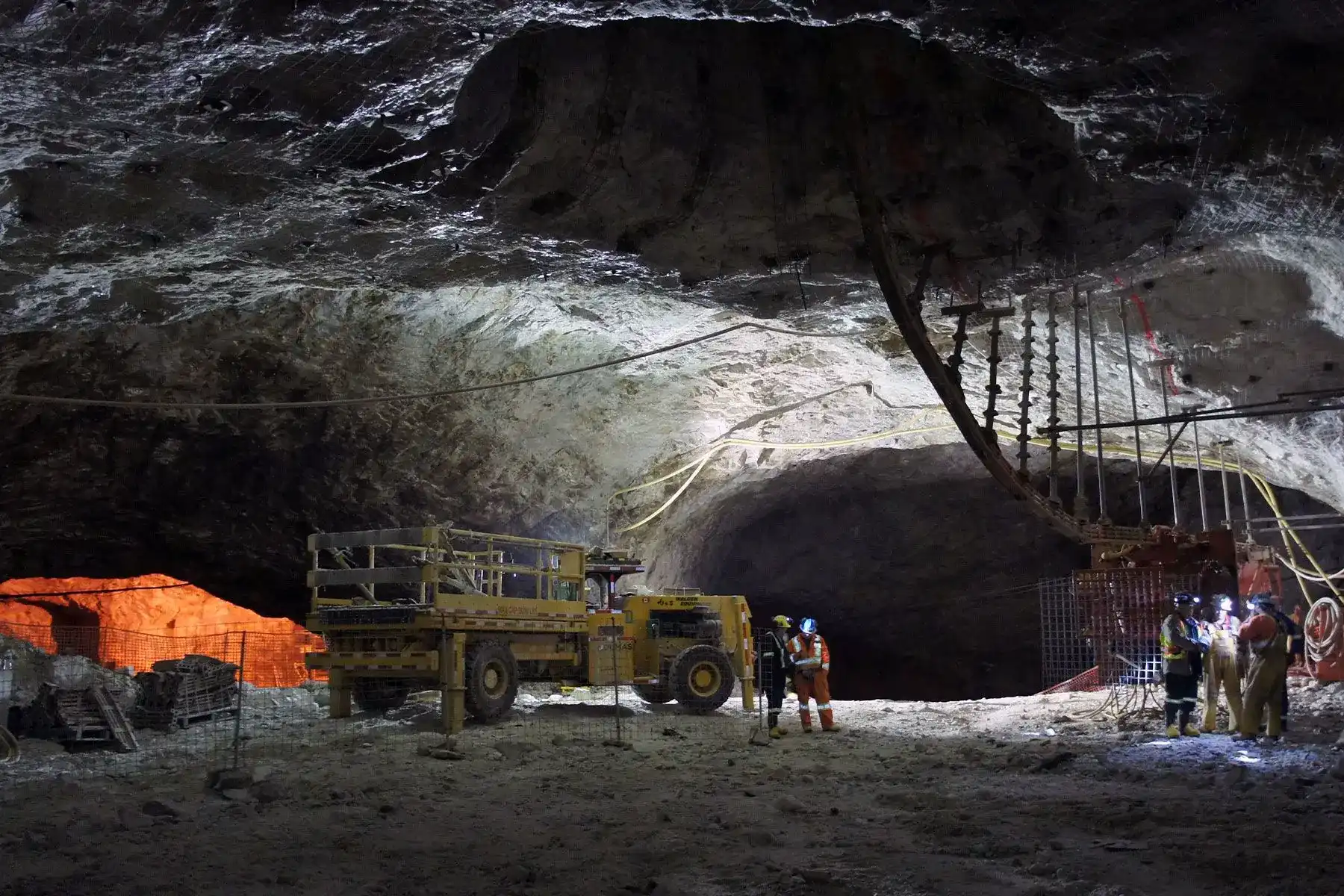

· Infrastructure: Employed in bridges, highways, tunnels, and other infrastructure projects for support and reinforcement.

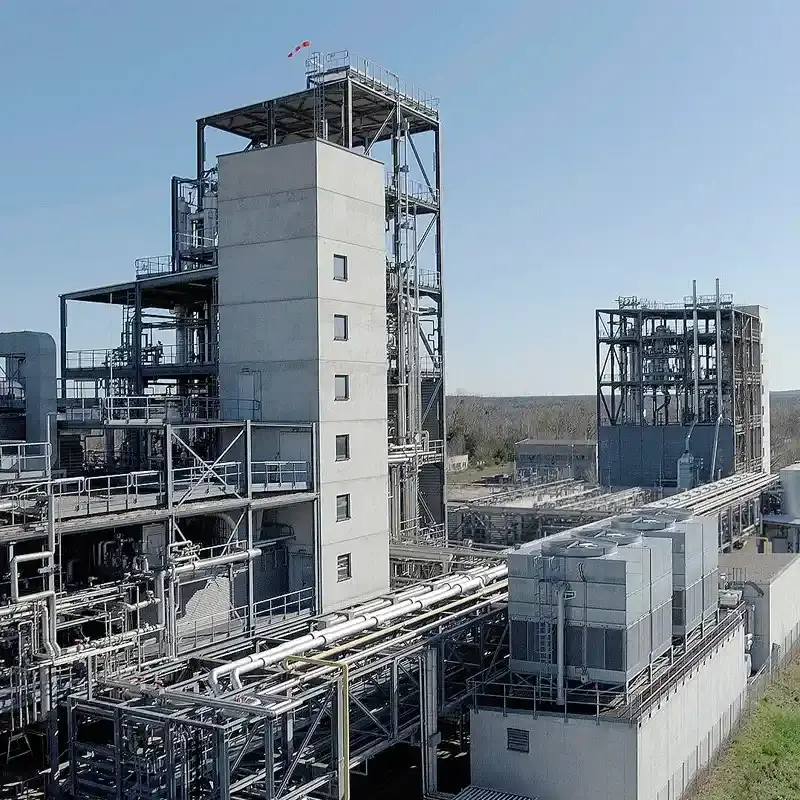

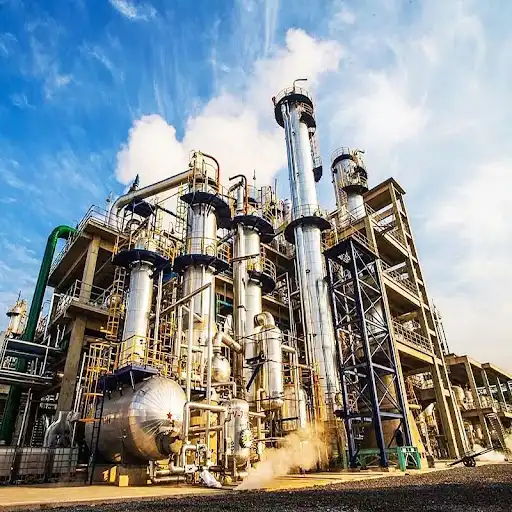

· Machinery and Equipment: Utilized in the manufacturing of machinery, equipment frames, and supports for industrial applications.
· Transportation: Used in the construction of trailers, railcars, and other transportation equipment requiring structural strength and integrity.
Longma Group:
Hebei Longma Group Limited(LONGMA GROUP) is one of China leading ERW/LSAW steel pipe manufacturers since 2003, with a registered capital of 441.8 billion, covering an area of 230000 square meters. The company specializes in the production: large-diameter, thick-walled, double-sided, sub-arc-seam, welding steel pipe, LSAW-Longitudinal Submerged Arc Welded, ERW steel pipes. By the end of 2023, the company's annual output exceeded 1000000 tons.
FAQ:
Q: What is the difference between ASTM A500 Grade A and Grade B tubing?
A: The main difference lies in their minimum yield and tensile strengths. Grade B tubing has higher minimum strengths compared to Grade A, making it suitable for applications requiring greater structural integrity.
Q: Can ASTM A500 tubing be welded?
A: Yes, ASTM A500 tubing is designed for welding. Both seamless and welded options are available, allowing for flexibility in fabrication processes.
Q: Is ASTM A500 tubing suitable for outdoor applications?
A: Yes, ASTM A500 tubing is commonly used in outdoor applications. It is often coated or painted to provide additional protection against corrosion and environmental elements.
Q: How can I purchase ASTM A500 structural tubing?
A: Longma is a professional manufacturer and supplier of A500 round tube. We offer a wide range of sizes and provide fast delivery of high-quality products at competitive prices. Please contact info@longma-group.com for inquiries or orders.
