Excellent Mechanical Properties
API 5L X65 pipes are renowned in the oil and gas industry for their exceptional mechanical properties. These high-strength steel pipes exhibit remarkable tensile strength, ranging from 535 MPa to 760 MPa, combined with excellent yield strength between 450 MPa and 600 MPa. The material's elongation typically reaches 18% minimum, demonstrating impressive ductility while maintaining structural integrity under various operational conditions.
The chemical composition of API 5L X65 steel is carefully controlled to achieve these superior mechanical properties. The carbon content is maintained at a maximum of 0.16%, while manganese levels typically range between 1.20% and 1.60%. These precise compositional controls, combined with advanced manufacturing processes, result in a microstructure that provides optimal strength-to-weight ratios and excellent weldability characteristics.
The hardness values of API 5L X65 pipes typically fall between 187-265 HBW (Brinell Hardness), ensuring both durability and resistance to wear. This balanced combination of strength and toughness makes these pipes particularly suitable for high-pressure applications in challenging environments.
|
|
|
API 5L X65 Pipe Design Pressure
The design pressure calculation for API 5L X65 pipes follows specific industry standards and takes into account multiple factors. The fundamental equation for determining the design pressure is based on Barlow's formula, modified to include various safety factors and environmental considerations. The maximum allowable operating pressure (MAOP) can be calculated using the following equation:
P = (2 × t × S × F × E) / D
Where: - P = Design pressure (psi) - t = Nominal wall thickness (inches) - S = Specified minimum yield strength (65,000 psi for X65 grade) - F = Design factor (typically 0.72 for pipeline applications) - E = Longitudinal joint factor (1.0 for seamless pipes) - D = Nominal outside diameter (inches)
For example, a 24-inch OD API 5L X65 pipe with a 0.500-inch wall thickness would have a theoretical design pressure of approximately 1,950 psi under standard conditions. However, actual operating pressures must consider additional factors such as temperature derating, corrosion allowance, and specific service conditions.
API 5L X65 Seamless Pipe For High-Temperature And Pressure Environments
API 5L X65 seamless pipes are renowned for their outstanding performance in environments characterized by high temperatures and pressures. They are designed to withstand extreme conditions, maintaining structural integrity across a broad temperature range from -45°C to 150°C (-49°F to 302°F), which is crucial for standard operations in various industries. The seamless design, devoid of longitudinal seams, significantly reduces the likelihood of failure at weak points, enhancing their suitability for applications where reliability is non-negotiable.
In high-pressure scenarios, these pipes stand out due to their consistent strength distribution around the entire circumference, which is a critical factor in withstanding internal pressure, external loads, and the effects of cyclic stresses. This makes them ideal for a variety of demanding applications, such as deep-water pipeline systems that operate under pressures exceeding 2000 psi, high-temperature processing facilities within the petrochemical industry, transmission pipelines that demand the highest levels of reliability, and offshore oil and gas extraction systems that face harsh conditions.
The API 5L X65 seamless pipes' exceptional performance in these challenging environments is largely due to their meticulous manufacturing process. This process involves hot forming solid billets into pipes without the use of welding, which ensures a uniform distribution of material properties throughout the pipe. This uniformity, in turn, eliminates the potential issues related to weld joint integrity that can arise under extreme conditions, thereby providing a reliable solution for critical applications where failure is not an option.

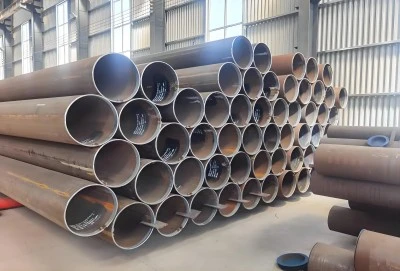

API 5L X65 Pipe For Sale
LONGMA GROUP, a leading provider of industrial piping solutions, proudly presents its API 5L X65 pipes, which are meticulously crafted to meet the highest international standards. These pipes are designed for various applications in the oil and gas industry, ensuring reliability and durability under diverse operating conditions. Available in two distinct product specification levels, PSL1 and PSL2, customers can select the appropriate grade based on their specific requirements.
PSL1 pipes are engineered for general pipeline applications, providing a balance of cost-effectiveness and performance. They are ideal for projects where standard industry specifications are sufficient to ensure the safe and efficient transport of fluids.
On the other hand, PSL2 pipes are tailored for applications that demand a higher level of quality assurance. These pipes are characterized by their adherence to more stringent chemical composition standards, superior tensile properties, and comprehensive testing procedures. PSL2 pipes are the preferred choice for critical services where the integrity of the pipeline is paramount, such as high-pressure transport systems or corrosive environments.
LONGMA GROUP's commitment to excellence is evident in the meticulous quality control processes that both PSL1 and PSL2 pipes undergo. These processes include:
1. Non-destructive testing (NDT): Utilizing advanced techniques like ultrasonic testing, radiographic testing, and magnetic particle inspection to ensure the pipes are free from defects without causing damage.
2. Hydrostatic testing: Subjecting the pipes to high-pressure water testing to verify their strength and ability to withstand the pressures encountered in service.
3. Chemical composition analysis: Ensuring the pipes are made from materials with the correct chemical composition to guarantee optimal performance and resistance to corrosion.
4. Mechanical property verification: Testing the pipes' mechanical properties, such as yield strength and elongation, to confirm they meet the specified standards.
5. Dimensional tolerance checking: Verifying that the pipes' dimensions, such as wall thickness and outside diameter, are within the allowable tolerances to ensure a perfect fit and seamless integration into the pipeline system.
LONGMA GROUP's API 5L X65 pipes are your reliable choice for both standard and demanding pipeline applications. For more information or to discuss your specific needs with our expert team, please feel free to reach out to us at info@longma-group.com. We are dedicated to providing you with the best piping solutions tailored to your project's unique demands.
