API 5L Welded Pipe
Grades:B,X42,X46,X52,X56,X60,X65,X70,X80
Welding Type:ERW,LSAW,DSAW,SSAW
Outer Diameter: 3"-80"
Thickness:SCH10-SCH160
Fastest Delivery Time: 7 Days+
Related Certificates: API 5L Certificate,ISO Certificate,QMS Certificate...

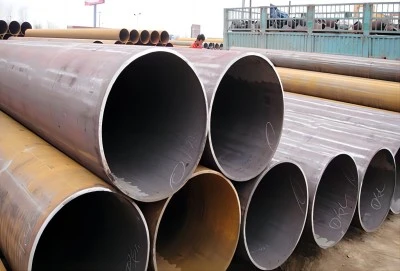

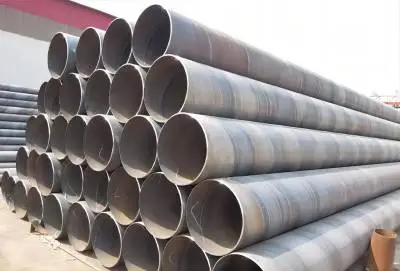

Introduction of API 5L Welded Pipe:
|
Product Name |
API 5L Welded Pipe |
|
Standard |
API 5L: Gr.B,X42,X46, X52,X56,X60,X65,X70,X80 PSL1 and PSL2 |
|
Welding Type |
ERW(Electrical Resistance Weld), HFW(High Frequency Weld), LSAW(Longitudinally Submerged Arc Welding), DSAW(Double Submerged Arc Welding), SSAW(Spirally Submerged Arc Welding) |
|
Outer Diameter |
3"- 80" (88.9mm--2032mm) |
|
Thickness |
SCH10-SCH160 (6.35mm-59.54mm) |
|
Length |
6m-18m |
|
End |
BE(Beveled Ends), PE(Plain Ends) |
|
Test |
Chemical Component Analysis, Mechanical Properties (Tensile strength, Yield strength, Elongation), Ultrasonic Testing, NDT(nondestructive testing), Hydrostatic Test, X-ray Test |
|
Fastest Delivery Time |
7 Days for normal specification |
|
|
|
API 5L Welded Pipe Specification:
|
Outer Diameter |
Norminal Wall Thickness(mm) |
|||
|
INCH |
MM |
|||
|
3-80 |
88.9-2032 |
6.35-59.54 |
||
Chemical Composition and Mechanical Properties:
|
Standard |
Grade |
Chemical Composition(max)% |
Mechanical Properties(min) |
|||||
|
C |
Si |
Mn |
P |
S |
Tensile Strength(Mpa) |
Yield Strength(Mpa) |
||
|
API 5L PSL1 |
B |
0.26 |
- |
1.20 |
0.030 |
0.030 |
415 |
415 |
|
X42 |
0.26 |
- |
1.30 |
0.030 |
0.030 |
415 |
415 |
|
|
X46 |
0.26 |
- |
1.40 |
0.030 |
0.030 |
435 |
435 |
|
|
X52 |
0.26 |
- |
1.40 |
0.030 |
0.030 |
460 |
460 |
|
|
X56 |
0.26 |
- |
1.40 |
0.030 |
0.030 |
490 |
490 |
|
|
X60 |
0.26 |
- |
1.40 |
0.030 |
0.030 |
520 |
520 |
|
|
X65 |
0.26 |
- |
1.45 |
0.030 |
0.030 |
535 |
535 |
|
|
X70 |
0.26 |
- |
1.65 |
0.030 |
0.030 |
570 |
570 |
|
|
API 5L PSL2 |
B |
0.22 |
0.45 |
1.2 |
0.025 |
0.015 |
415 |
415 |
|
X42 |
0.22 |
0.45 |
1.3 |
0.025 |
0.015 |
415 |
415 |
|
|
X46 |
0.22 |
0.45 |
1.4 |
0.025 |
0.015 |
435 |
435 |
|
|
X52 |
0.22 |
0.45 |
1.4 |
0.025 |
0.015 |
460 |
460 |
|
|
X56 |
0.22 |
0.45 |
1.4 |
0.025 |
0.015 |
490 |
490 |
|
|
X60 |
0.12 |
0.45 |
1.6 |
0.025 |
0.015 |
520 |
520 |
|
|
X65 |
0.12 |
0.45 |
1.6 |
0.025 |
0.015 |
535 |
535 |
|
|
X70 |
0.12 |
0.45 |
1.7 |
0.025 |
0.015 |
570 |
570 |
|
|
X80 |
0.12 |
0.45 |
1.85 |
0.025 |
0.015 |
625 |
625 |
|
Our Advantages for API 5L Welded Pipe:
· Competitive Price: We have long-term stable cooperation with raw material factories, mature and complete production supporting facilities, a rigorous quality control system, and an integrated model that keeps our production costs at a relatively low level.
· Fast Delivery Time: The production of steel pipes with standard specification can be completed in as fast as 7 days.
· Complete Certification: All types of certificates are available, including API 5L certificate, ISO 9001 certificate, ISO 14001 certificate, FPC certificate, Environmental Quality System certificate, and more.
· Advanced Production Equipment: We imported the equipment from Germany and developed independently four production equipments.
· Professional Team: We have over 300 employees, including more than 60 technical personnel, and possesses an independent equipment research team.
· Comprehensive Testing Facilities: We are equipped with various testing facilities, including but not limited to online ultrasonic automatic flaw detectors, industrial X-ray television and other essential testing equipment.
Application:
Longma Group's API 5L Welded Pipe find wide-ranging applications in:
|
|
|
|
Oil and gas pipelines |
Structural support for bridge, building construction |
|
|
|
|
Water and liquid transportation |
Piling and foundation work in construction project |
|
|
|
|
Offshore/Onshore construction |
Electricity and Heating power |
Project:
Year 2019
Customer: GERMAN STEEL CONT. LLC
Project: API 5L X60 WELDED PIPE TO UAE USED FOR OIL TRANSPORTATION PROJECT
Products: API 5L X60 WELDED PIPE
Size: 609.6*28.58mm, 762*3015.88mm, 812.8*17.48mm, Length: 6 meters/pc
Frequently Asked Questions (FAQ):
Q：What are the key differences between API 5L Welded Pipes and Seamless Pipes?
A：While both welded and seamless pipes serve similar purposes, the primary difference lies in their manufacturing processes. Welded pipes are manufactured by welding steel plates or coils together, whereas seamless pipes are formed from a single piece of steel without any welding. Each type has its advantages and is suitable for different applications.
Q：Are API 5L Welded Pipes suitable for corrosive environments?
A：Yes, API 5L Welded Pipes are designed to withstand corrosive environments, especially when coated with protective materials or linings. Longma offers various coating options to enhance corrosion resistance and prolong the service life of the pipes in challenging conditions.
Q：Can API 5L Welded Pipes be customized to meet specific project requirements?
A：Absolutely. Longma provides customization services to tailor API 5L Welded Pipes according to customer specifications, including size, grade, and coating requirements. Our experienced team works closely with clients to deliver bespoke solutions that align with their project needs.
Longma Group:
Hebei Longma Group Limited(LONGMA GROUP) is one of China leading ERW/LSAW steel pipe manufacturers since 2003, with a registered capital of 441.8 billion, covering an area of 230000 square meters. The company specializes in the production: large-diameter, thick-walled, double-sided, sub-arc-seam, welding steel pipe, LSAW-Longitudinal Submerged Arc Welded, ERW steel pipes. By the end of 2023, the company's annual output exceeded 1000000 tons.
For inquiries or to place an order, please contact info@longma-group.com. Let Longma Group be your trusted partner for premium API 5L Welded Pipes that exceed your expectations.
|
|
|
|
