Electric Resistance Welding (ERW):
Electric Resistance Welding (ERW) is one of the most common and efficient methods used for producing straight seam steel pipe. This process involves the application of heat generated by electrical resistance and pressure to join the edges of a rolled steel strip. The ERW process is particularly suitable for manufacturing pipes with smaller diameters, typically ranging from 8 to 24 inches.
In the ERW process, a flat steel strip is first formed into a cylindrical shape using rollers. As the edges of the strip come together, a high-frequency electric current is passed through them. The resistance to this current generates heat, which raises the temperature of the steel to its melting point. Simultaneously, pressure is applied to force the heated edges together, creating a fusion weld without the need for filler material.
One of the key advantages of ERW is its high production speed, making it cost-effective for large-scale pipe manufacturing. The process can produce up to 2,000 feet of pipe per minute, depending on the pipe size and wall thickness. Additionally, ERW pipes typically have a smooth internal and external surface, which is beneficial for applications requiring low friction or easy coating.
However, ERW does have some limitations. The process is generally limited to pipes with wall thicknesses up to about 0.5 inches. For thicker walls or larger diameters, other welding methods are usually preferred. Moreover, the quality of ERW welds can be affected by factors such as improper alignment of the strip edges or variations in the electrical current, necessitating careful control and monitoring of the welding process.
|
|
|
Submerged Arc Welding (SAW):
Submerged Arc Welding (SAW) is another widely used method for producing straight seam steel pipe, particularly for larger diameter pipes with thicker walls. This process is known for its high deposition rate and excellent weld quality, making it suitable for applications requiring high strength and reliability.
In the SAW process, a continuously fed electrode wire is used to form an arc with the workpiece. The entire welding operation is performed under a blanket of granular flux material, which protects the weld pool from atmospheric contamination and helps to stabilize the arc. As the flux melts, it forms a slag that further protects the weld as it cools.
One of the main advantages of SAW is its ability to produce deep penetration welds, which is crucial for thick-walled pipes. The process can handle wall thicknesses up to 1.5 inches or more, making it suitable for large-diameter pipes used in high-pressure applications. SAW also offers high welding speeds and can be easily automated, contributing to its efficiency in large-scale pipe production.
However, SAW does have some drawbacks. The equipment required for SAW is generally more complex and expensive than that used in ERW. The process also generates a significant amount of slag, which needs to be removed after welding. Additionally, SAW is not as suitable for thin-walled pipes as ERW, as the high heat input can cause distortion in thinner materials.
Gas Shielded Welding:
Gas Shielded Welding, which includes processes like Gas Metal Arc Welding (GMAW) and Gas Tungsten Arc Welding (GTAW), is another method used in the production of straight seam steel pipe. These processes use an inert or semi-inert gas to protect the weld area from atmospheric gases that can cause defects in the weld.
GMAW, also known as MIG (Metal Inert Gas) welding, uses a continuously fed wire electrode and an externally supplied shielding gas. This process is known for its versatility and can be used on a wide range of pipe sizes and materials. GMAW offers good weld quality and relatively high welding speeds, making it suitable for both small-scale and large-scale pipe production.
GTAW, also called TIG (Tungsten Inert Gas) welding, uses a non-consumable tungsten electrode to produce the weld. While slower than GMAW, GTAW offers exceptional control and can produce very high-quality welds. It's particularly useful for welding thin-walled pipes or for applications requiring precise, clean welds.
Gas shielded welding processes offer several advantages in pipe production. They can be used on a wide range of materials, including stainless steel and aluminum alloys. These processes also produce minimal slag, reducing post-weld cleanup. However, they are generally slower than ERW or SAW and may not be as cost-effective for large-scale production of carbon steel pipes.
Induction Heating or Flame Heating:
Induction Heating and Flame Heating are not welding methods per se, but they are important processes often used in conjunction with other welding techniques in the production of straight seam steel pipe. These heating methods are primarily used to prepare the edges of the steel strip for welding by raising their temperature to improve weldability.
Induction Heating uses electromagnetic induction to heat the edges of the steel strip. An alternating current is passed through an induction coil, creating a magnetic field. When the steel passes through this field, eddy currents are induced in the material, generating heat. This method offers precise control over the heating process and can quickly bring the steel to the desired temperature.
Flame Heating, on the other hand, uses gas flames to heat the edges of the steel strip. While not as precise as induction heating, flame heating can be effective for certain types of steel and welding processes. It's often used in combination with pressure welding techniques.
Both induction and flame heating can significantly improve the welding process by reducing the amount of energy required for welding, minimizing distortion, and improving the overall quality of the weld. However, these processes require careful control to avoid overheating, which could negatively affect the material properties of the steel.
Ultrasonic Inspection:
Ultrasonic Inspection is a crucial quality control measure in the production of straight seam welded pipe, rather than a welding method itself. This non-destructive testing technique is used to detect defects in the weld seam and ensure the integrity of the pipe.
In ultrasonic inspection, high-frequency sound waves are transmitted into the material. These waves reflect off surfaces, including any internal defects. By analyzing these reflections, inspectors can detect and locate flaws such as cracks, lack of fusion, or inclusions in the weld.
For straight seam welded pipes, ultrasonic inspection is typically performed automatically as part of the production line. The pipe is rotated while ultrasonic transducers scan the weld seam. This allows for 100% inspection of the weld, ensuring that every inch of the seam meets the required quality standards.
Ultrasonic inspection is particularly valuable because it can detect both surface and subsurface defects without damaging the pipe. It's highly sensitive and can detect very small flaws, making it an essential tool for ensuring the safety and reliability of welded pipes, especially those used in critical applications like oil and gas transportation.
Straight seam welded pipe exporter:
When it comes to choosing a manufacturer and exporter of straight seam welded pipes, it's crucial to select a company with a proven track record of quality and reliability. One such company is Longma, which offers a range of welded pipe products.

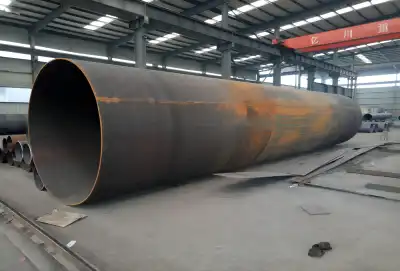

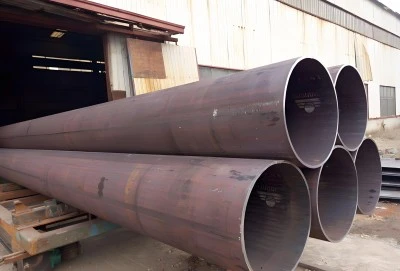

Longma's product line includes pipes manufactured using various welding methods, including ERW (Electric Resistance Welding), LSAW (Longitudinal Submerged Arc Welding), and SSAW (Spiral Submerged Arc Welding). This diverse range allows them to cater to different customer needs and applications.
ERW pipes from Longma are suitable for applications requiring smaller diameter pipes with relatively thin walls. These pipes are known for their smooth surface finish and uniform wall thickness. LSAW pipes, on the other hand, are ideal for large-diameter, thick-walled pipes used in high-pressure applications. SSAW pipes offer a good balance of strength and cost-effectiveness for medium to large diameter pipes.
Longma's offering of multiple welding types (ERW, LSAW, SSAW) indicates their ability to meet diverse customer needs. If you're in the process of choosing a straight seam welded pipe manufacturer, you can contact Longma at info@longma-group.com for more information about their products and services.
